AIR TORQUE VALVE
Or Call +880 1400576011

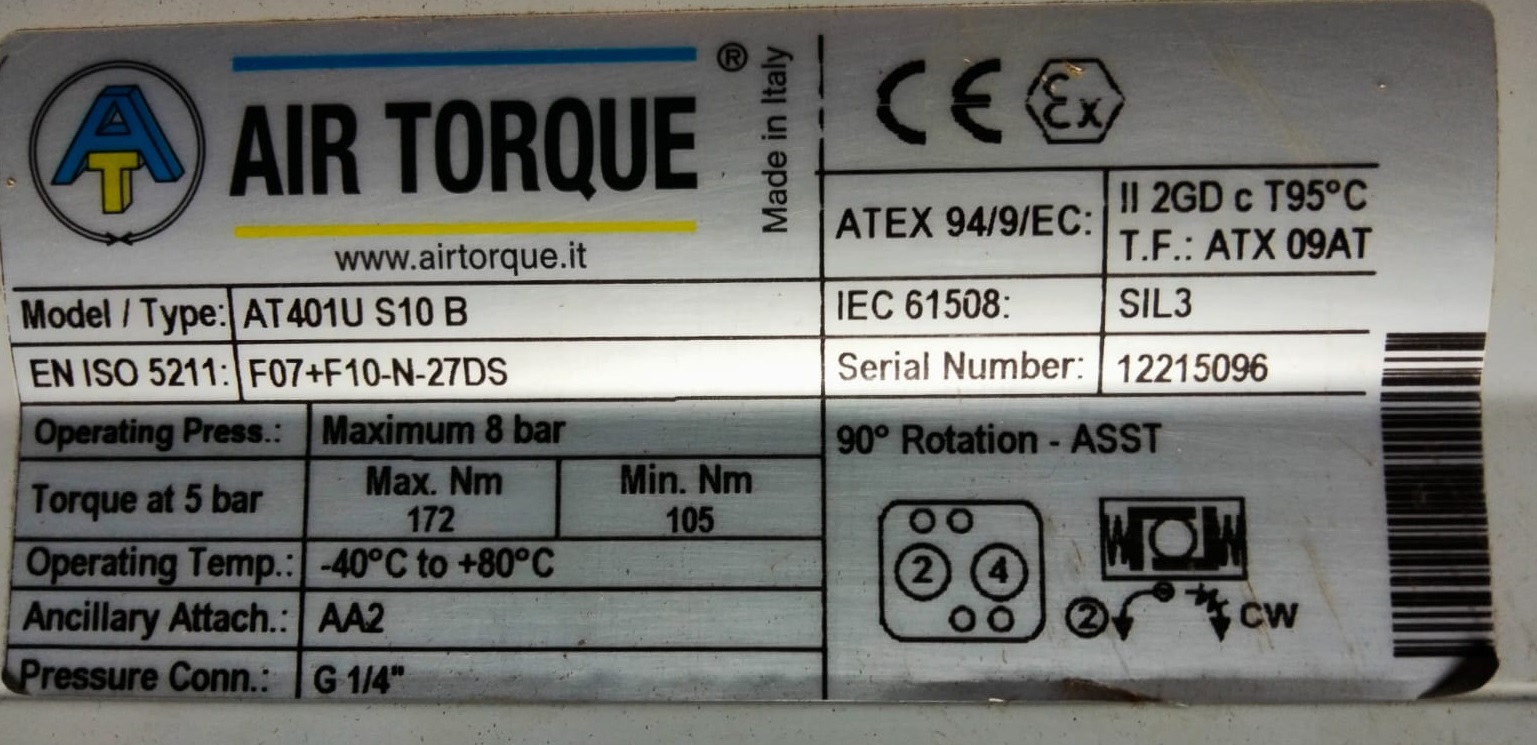

DESCRIPTION
Model/Type No:- AT401U S10 B
EN ISO 5211:- F07+F10-N-27DS
Serial Number:- 12215096
IEC 61508:- SIL3
Rotation:- 90 ASST
Operating Press:- Maximum 8 bar
Torque at 5 bar :- Max.Nm=172
:- Min.Nm=105
Operating Temp:- -40C to + 80C
Ancillary Attach:- AA2
Pressure Conn:- G 1/4”
Made In:- Italy.
SPECIFICATIONS
| Manufacturer | STAR LINE |
| Model | AT401U S10 B |
| Year | 10/2012 |
| Condition | USED |
| Stock Number | null |
| Additional Info | null |
